Name: Hwashi Car Shock Absorbers Repair Machine, Resistance Seam Welding Machine
Brand: Guangdong Hwashi Technology inc.
SKU: WL-FS-75K
Price: 225,000.00 USD
Availability: InStock

ホーム > 製品 > シーム溶接機械 >

Hwashi Car Shock Absorbers Repair Machine, Resistance Seam Welding Machine

car shock absorber repair machine

resistance seam welding machine

automotive seam welding equipment

Place of Origin:

China

ブランド名:

Hwashi

証明:

CE,CCC,ISO

Model Number:

WL-FS-75K

送信

引用を要求しなさい

製品詳細

Product Name:

Hwashi Car Shock Absorbers Repair Machine, Resistance Seam Welding Machine

Condition:

New

Abrasive Belt Width:

50mm

Weight:

300kg

Control System:

PLC

Welding Width:

5-20mm

Minimum Welding Thickness:

0.2mm

Voltage:

380V,2 Phase,50/60Hz

Machine Type:

Resistance Welding Machine

Service Life:

8-10 years

weight (kg):

400KG

支払及び船積みの言葉

Minimum Order Quantity

価格

交渉可能

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

T/T, L/C

Supply Ability

50 sets per month

Automatic CNC Stainless Steel Kitchen Sink Bowl Maker Seam Welding Machine with Pump Motor Type

お問い合わせ

ビデオ

Three Phase 380 V Bathroom Sink Seam Welding Machine 780x1500x1800mm

お問い合わせ

ビデオ

Three Phase 380 V Bathroom Sink Seam Welding Machine 780x1500x1800mm

お問い合わせ

ビデオ

HWASHI Roller Spot Welder Ventilation Duct Manual Tin Can Side Seam Welding Machine Roll to Roll Banner Welder

お問い合わせ

送信

+8613380655800

marketing@hwashi.com

今接触

製品の説明

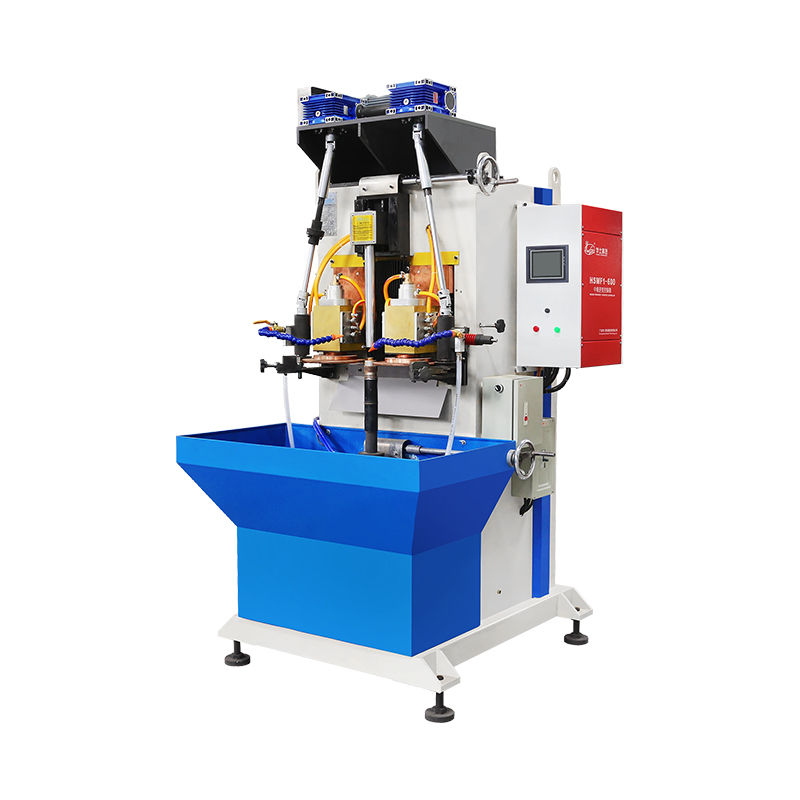

HWASHI Car Shock Absorbers Repair Machine, Resistance Seam Welding Machine

Seam welding machine is a method that uses a pair of roller electrodes instead of the cylindrical electrodes of spot welding, and the welded workpiece moves between the rollers to produce a sealed weld with a molten core overlapping each other to weld the workpiece together. The weld consists of a single weld joint, which is divided into roll spot welding or gas-tight seam welding according to the different core fusion overlap. Seam welding machine is widely used for thin plate welding of oil drums, tanks, radiators, aircraft and automobile fuel tanks and sealed containers in jet engines, rockets and missiles.

Hwashi Car Shock Absorbers Repair Machine, Resistance Seam Welding Machine 1

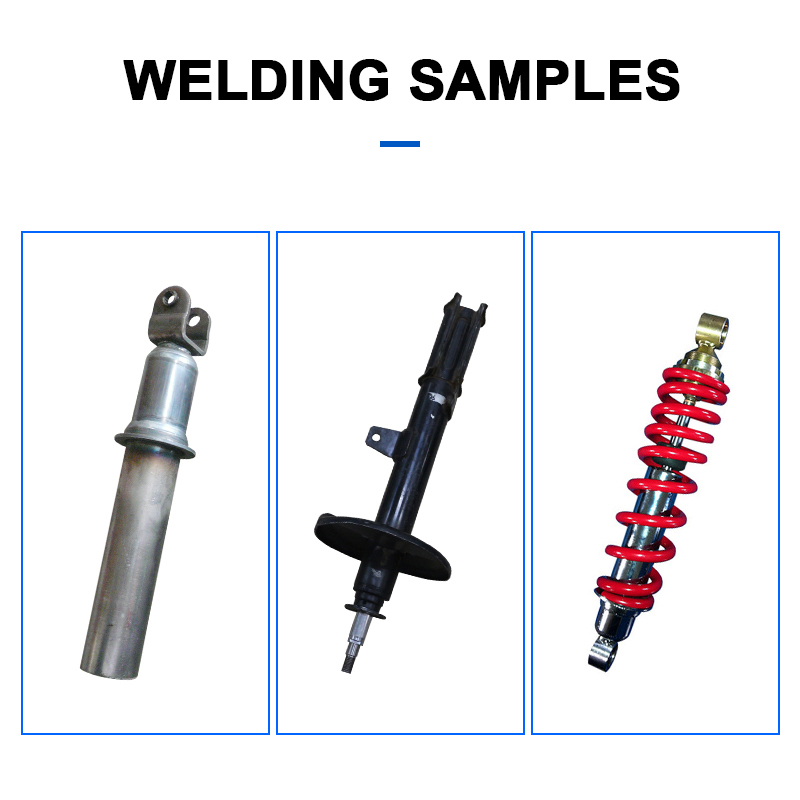

Welding sample

Hwashi Car Shock Absorbers Repair Machine, Resistance Seam Welding Machine 2

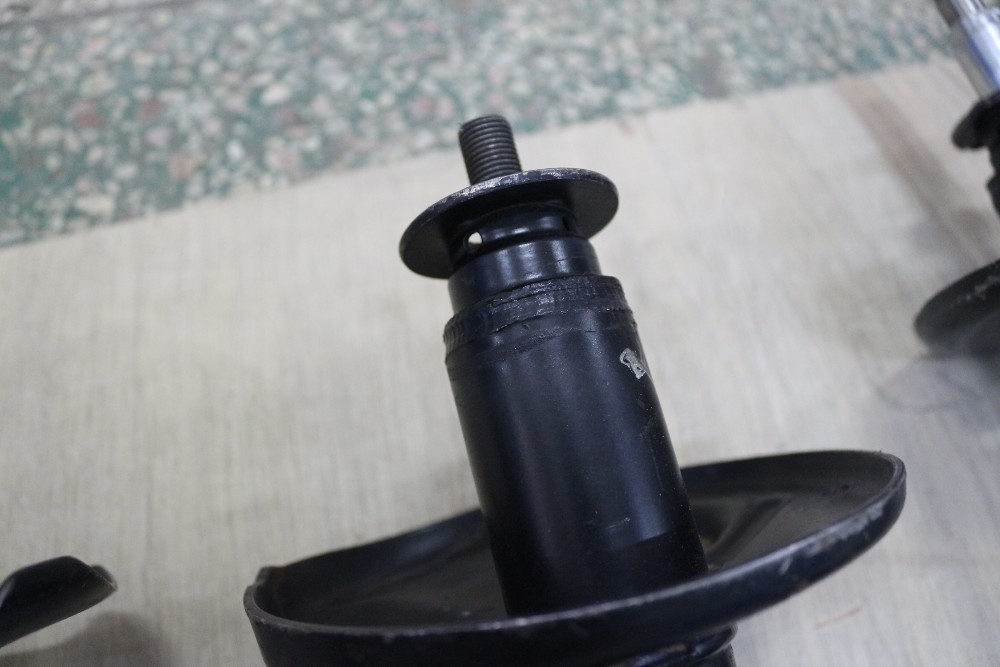

Welding effect

Hwashi Car Shock Absorbers Repair Machine, Resistance Seam Welding Machine 3

Hwashi Car Shock Absorbers Repair Machine, Resistance Seam Welding Machine 4

Features of The Seam Welding Machine

1. seam welding machine use the roller electrode to replace the cylindrical electrode of spot welding. 2. It will generate weld nuggets which will overlap with each other so as to achieve welding effect. 3. AC pulse current or amplitude modulation current will be adopted, but three (single)-phase rectification, medium frequency and high frequency DC are also available. 4. According to different overlap of the melting cores, it could be divided into roll spot welding and air-tight seam welding. 5. There exist three stages in the forming process of welding spots: pressurization, heating fusing and cooling crystallization like spot welding.

6. The welding wheel can be operated in both horizontal and vertical directions. 7. The transformer and the welding wheel adopt the forced water cooling circulation system, which has a high load duration and achieves Continuous and stable welding.

Model	WL-FS-50K
Input Power (V/φ)	380V 1φ / 380V 3φ
Rated Power (KVA)	50
Applicable Material	Stainless Steel, Carbon steel, Aluminum, Metal
Max Short Circuit Current (KA)	13
Electrode Force (KG)	800
Electrode Stroke (MM)	100
Dimension(LWH)	950mm490mm1675mm
Warranty	1 years
