起源の場所:
中国
ブランド名:
HWASHI
証明:
CE/CCC/ISO
モデル番号:
WL-MF-50K

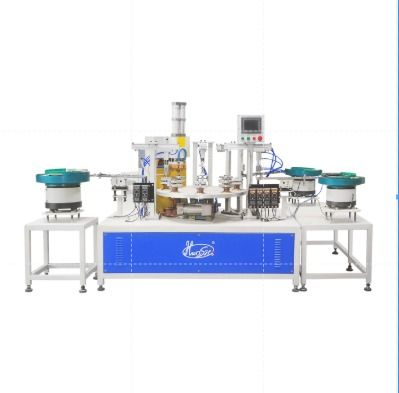

Hwashi Cap Cover Automatic Spot Welding Machine with Multi Welding Station
Product description
HWASHI Full Automatic Rotary Table Spot Welding Machine for Nut, Capacitor Welding is designed as automatic welding, automatic rotating and automatic discharging. The machine is of 8 welding positions, so it can achieve cycle working and continuous welding. Moreover, medium frequency inverter power source is adopted with features of high power factor, electricity and energy saving, and it can achieve stable and reliable welding spots. Only need to change the fixtures (welding moulds) then the machine can achieve welding different products. The present design could help you weld product with different dimensions. The main welding part of Multi-station CNC Automatic Rotary Spot Welding Machine is equipped with automatic rotating device. The operator only needs to put the work piece onto the rotary device. He can put 8 work pieces at most for one time. Then start “welding”, the main welding body will conduct welding. After welding the No. 1 work piece, the rotating device will rotate, then the No.2 work piece will be moved to the welding position, cycle process will continue. In the meantime, the welded work piece will be discharged automatically in turn and the operator could keep putting new work piece onto the certain position. In such design, the machine is of fast speed and high efficiency.
|
Multi Station Special Designed Fixture We will design the fixture according to your actual product. |
Automatic Vibration Feeding Plate It will feed the small parts to the fixture automatically. And the machine will do assembly and welding automatically. |

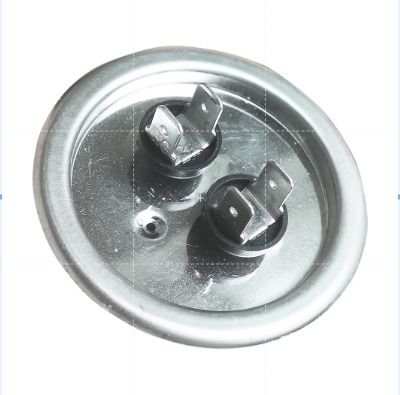

Automatic Loading and Unloading Mechanical Arm Final Product Quality
|
Technical Parameters of Full Automatic Rotary Table Spot Welding Machine |
||
| 1 | Input Voltage | 380V three-phase |
| 2 | Input Current | 150A |
| 3 | Output Voltage | DC11.6V |
| 4 | Max Short Circuit Current | 32000A |
| 5 | Welding Models | 32 types |
| 6 | Rotary Table Diameter | 800mm |
| 7 | Rotary Table Material Positions | 6-8 positions |
| 8 | Rotary Table Rotating Speed | 0.5m/sec |
