起源の場所:
中国
ブランド名:
HWASHI
証明:
CE/CCC/ISO
モデル番号:
WL-B-50K

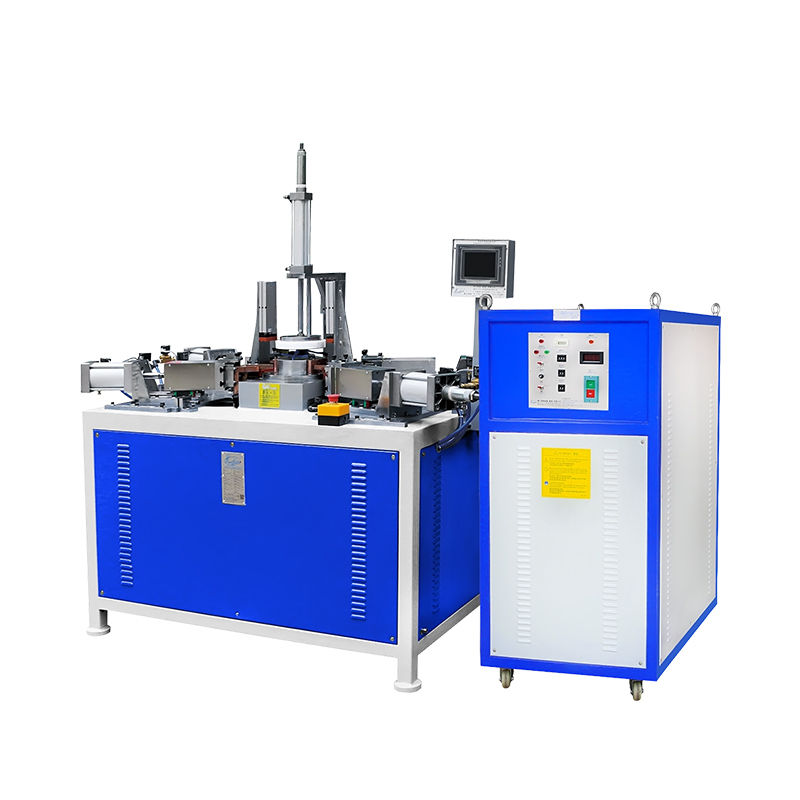

25K Double Side SS Cookware Pot Handle Projection Welding Capacitive Discharge Spot Welder
Double side SS cookware pot handle projection welding machine is used for welding the pot handles. It can help to weld the two handles at the same time to increase efficiency. Use projection welding method to do welding for the two handles. Provided by China SS cookware pot handle projection welding machine suppliers, this 15KVA machine is equipped with one set of capacitor discharge welding power source. It is suitable to weld the pot body thickness 1.2mm while the handle diameter is 5mm (with emboss).
|
|
|
Intelligent welding control system Intelligent Touch Screen Controller Input and read |
Raw materials made to standard Thicker Copper Plate or Copper Belt To ensure stable conductivity in welding.
|
|
|
|
Custom processing of electrodes Customized Electrodes which will be suitable forWelding material like steel, aluminium, silver, stainless Steel, and nickel steel. |
Shape structure and welding method Design the right machine shape and mold according to
|
Features of The Capacitor Discharge Spot Welding Machine
1.The requirements for the power grid are low and do not affect the power grid.
2.The welding process is short, the instantaneous current is high, and the heat affected zone is small.
3.The water cooling circulation system helps to effectively reduce the consumption of electrodes and transformers.
4.The welding surface oxidation and deformation is small, no black coating, and no grinding process is required after welding.
Specification
| Model | Voltage V |
Power KVA |
Output Head W.S |
Capacitance UF |
Electrode Force KG |
Electrode Stroke MM |
Overall Dimension MM |
| WL-C-1K | 220V 1PH | 1KVA | 300 | 3000 | 30 | 25 | 545 |
| WL-C-2K | 220V 1PH | 2KVA | 500 | 4500 | 100 | 50 | 545 |
| WL-C-2.5K | 220V 1PH | 2.5KVA | 1000 | 9000 | 100 | 50 | 545 |
| WL-C-3K | 380V 3PH | 3KVA | 1500 | 14000 | 350 | 80 | 950 |
| WL-C-5K | 380V 3PH | 5KVA | 3000 | 28000 | 350 | 80 | 700 |
| WL-C-7K | 380V 3PH | 7KVA | 4500 | 42000 | 800 | 100 | 950 |
| WL-C-10K | 380V 3PH | 10KVA | 6000 | 60000 | 1000 | 100 | 950 |
| WL-C-12K | 380V 3PH | 12KVA | 7000 | 70000 | 1000 | 100 | 950 |
| WL-C-15K | 380V 3PH | 15KVA | 8000 | 80000 | 1000 | 100 | 950 |
| WL-C-18K | 380V 3PH | 18KVA | 10000 | 15000 | 1000 | 100 | 950 |
| WL-C-20K | 380V 3PH | 20KVA | 15000 | 150000 | 1500 | 100 | 950 |
| WL-C-25K | 380V 3PH | 25KVA | 18000 | 18000 | 2000 | 100 | 950 |
| WL-C-30K | 380V 3PH | 30KVA | 20000 | 20000 | 2000 | 100 | 1100 |
| WL-C-40K | 380V 3PH | 40KVA | 25000 | 25000 | 2000 | 100 | 1100 |
| WL-C-50K | 380V 3PH | 50KVA | 30000 | 30000 | 2000 | 100 | 1100 |
| WL-C-60K | 380V 3PH | 60KVA | 35000 | 35000 | 2000 | 100 | 1100 |

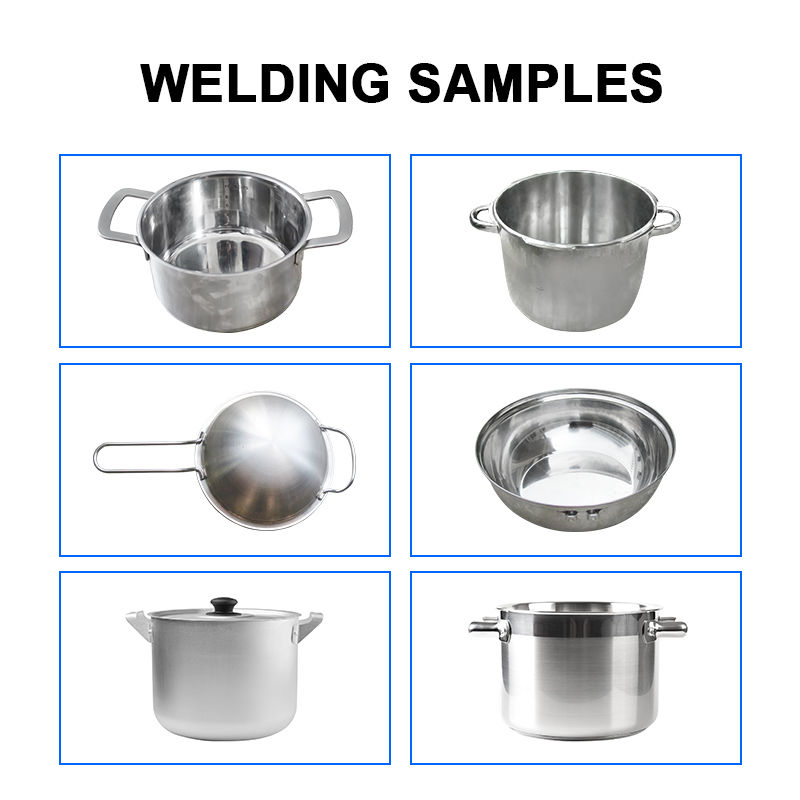

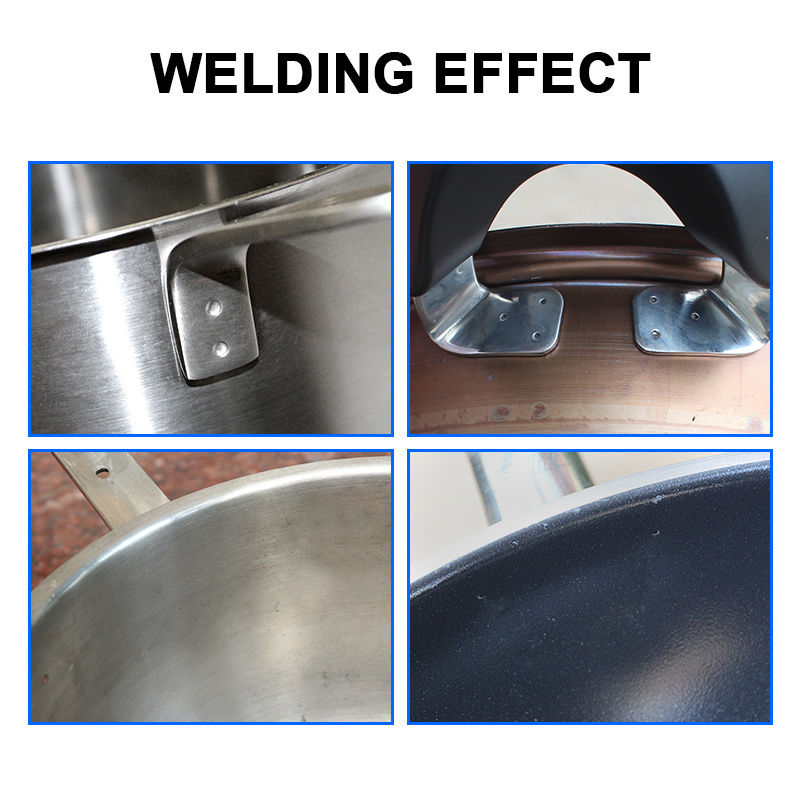

Application and samples
