HWASHI Wire Diameter 2-8mm Automatic ring making butt welding machine Circle Ring Bar Pneumatic Resistance Butt Welding Machine

automatic ring making welding machine

pneumatic resistance butt welder

circle ring bar welding machine

起源の場所:

中国

ブランド名:

HWASHI

証明:

CE/CCC/ISO

送信

引用を要求しなさい

製品詳細

製品名:

HWASHI ワイヤ直径 2-8mm 自動リング製造バット溶接機円環リングバー耐圧バット溶接機

保証:

12か月

状態:

新しい

サービスライフ:

8〜10年

標準:

CE/CCC/ISO

体重（kg）:

120kg

支払及び船積みの言葉

最小注文数量

1セット

価格

交渉可能

パッケージの詳細

海にふさわしい木製パッケージ

受渡し時間

あなたの支払いを受け取ってから7-30営業日

支払条件

L/C、T/T

供給の能力

月額50セット

Hwashi 220-380V Stainless Steel Capacitor Discharge Spot Welder Stainless Steel Milk Pot Welding Machine, Pot Handle Spot Welder

お問い合わせ

ビデオ

HWASHI WL-MF-250K Vertical Type Metal Sheet Medium Frequency Inverter Spot Welding Machine

お問い合わせ

ビデオ

Hwashi Automatic Steel Wire Ring Making and Welding Machine / Butt Welding Machine

お問い合わせ

ビデオ

HWASHI Wire Diameter 2-8mm Automatic ring making butt welding machine Circle Ring Bar Pneumatic Resistance Butt Welding Machine

お問い合わせ

送信

+8613380655800

marketing@hwashi.com

今接触

製品の説明

Product Description

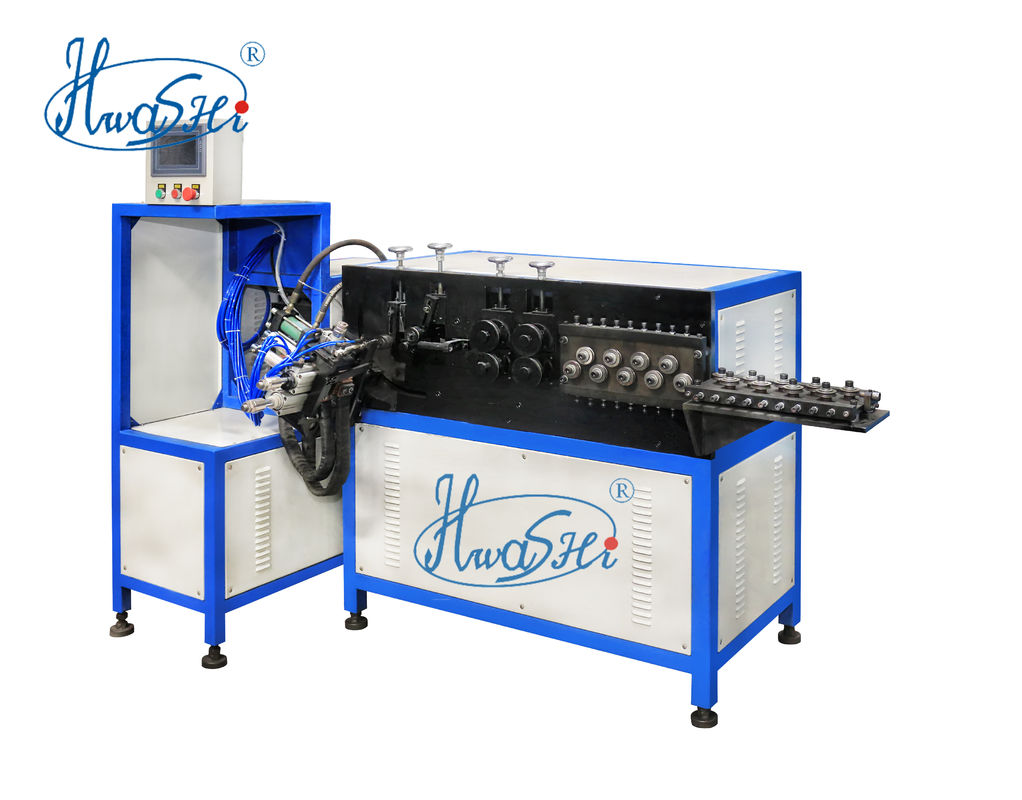

HWASHI Wire Diameter 2-8mm Automatic ring making butt welding machine Circle Ring Bar Pneumatic Resistance Butt Welding Machine

Product description
Stainless Steel Mild Steel Wire Frame Butt Welding Machine T butt Welding Machine aluminum pipe butt Welding Machine butt welder Under the operation of transformer, butt welding machine utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the work pieces in molten condition. Thus, the purpose of welding the two work pieces is achieved.

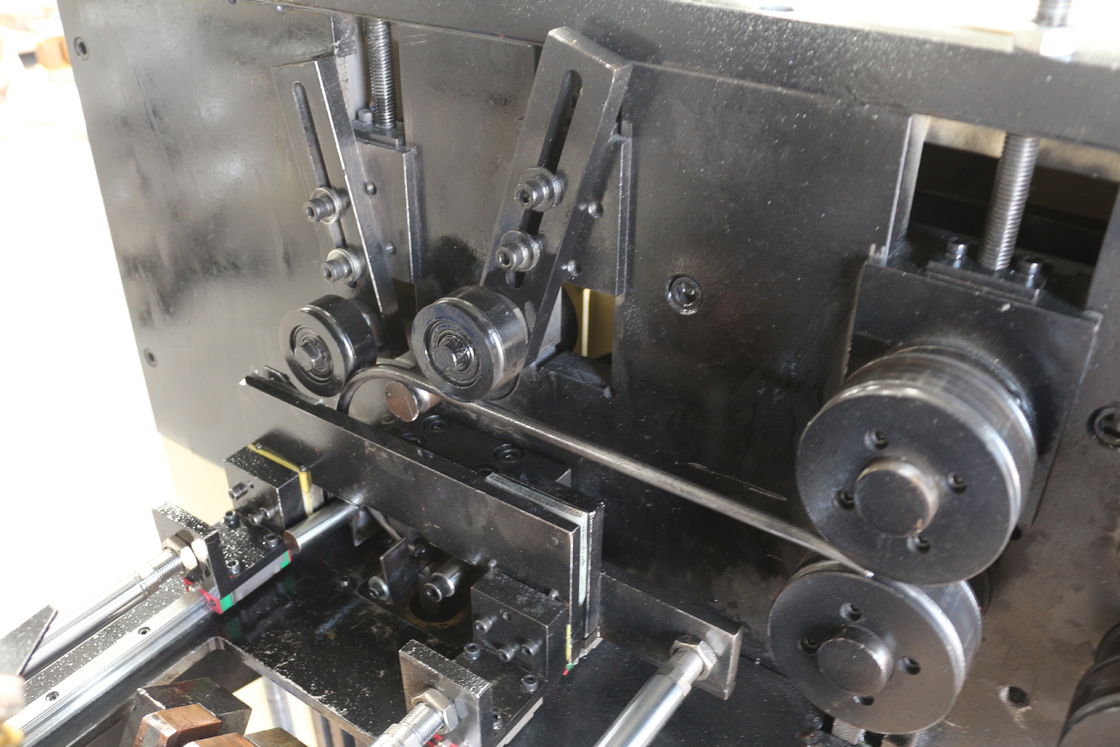

HWASHI Wire Diameter 2-8mm Automatic ring making butt welding machine Circle Ring Bar Pneumatic Resistance Butt Welding Machine 1

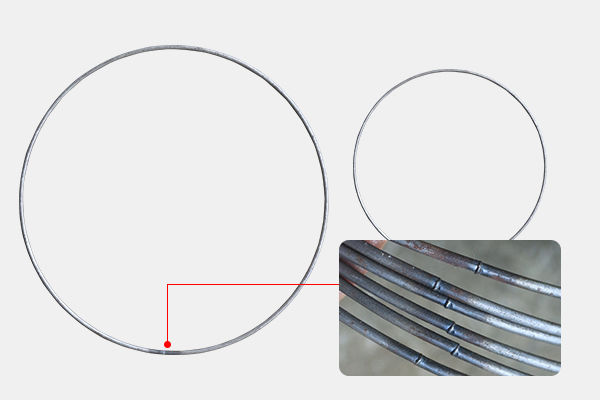

HWASHI Wire Diameter 2-8mm Automatic ring making butt welding machine Circle Ring Bar Pneumatic Resistance Butt Welding Machine 2

Model	Small Ring Making	Vertical Type	6mm Wire Special Use	10mm Wire Special Use
Wire Diameter Range	1.2-3mm	1.6-5mm	5-6.5mm	6.5-10mm
Ring Diameter Range	18-80mm	70-450mm	250-450mm	350-450mm
Air Pressure Range	4-6Mpa
Power Type	AC Type
Motor Power	2.3KW	2.3KW	3.0KW	5.0KW
Dimension	1000x800x1130mm	1320x1000x1300mm	1450x1100x1300mm	1450x1300x1400mm
Weight	1000kg	1200kg	1400kg	1600kg
Main Power Voltage	Three-phase 380V 50Hz
Welding Method	Resistance Welding
Suitable Wire Material	Cold Drawn Wire, Galvanized steel wire, iron wire, etc.
