Name: Durable C Type Crank Arm Table Spot Welding Machine For Precision Bending Tasks
Brand: Guangdong Hwashi Technology inc.
SKU: WL-SQ100K
Price: 15000 USD
Availability: InStock

ホーム > 製品 > ドアパネルスポット溶接機 >

Durable C Type Crank Arm Table Spot Welding Machine For Precision Bending Tasks

C type crank arm spot welder

precision bending spot welding machine

door panel spot welder with warranty

起源の場所:

中国

ブランド名:

HWASHI

証明:

CE/CCC/ISO

モデル番号:

WL-SQ100K

送信

引用を要求しなさい

製品詳細

製品名:

380V,2相

定格容量:

150KVAx4

コアコンポーネントの保証:

1年

キーセールスポイント:

plc

最大厚さの厚さ:

3+3mm

システム制御装置:

USMCC SCR

支払及び船積みの言葉

最小注文数量

1セット

価格

US $15000

パッケージの詳細

海にふさわしい木製パッケージ

受渡し時間

あなたの支払いを受け取ってから7-30営業日

支払条件

T/T、L/C

供給の能力

月額50セット

Stainless Steel Welding Machine for Heavy-Duty Structural Reinforcement Applications

お問い合わせ

ビデオ

Durable C Type Crank Arm Table Spot Welding Machine For Precision Bending Tasks

お問い合わせ

ビデオ

ステンレス鋼の溶接機で精密な曲げが容易になりました工業グレードの性能

お問い合わせ

ビデオ

ステンレス鋼のスイッチ金属ドアのパネルの溶接機で標準電極先で溶接

お問い合わせ

送信

+8613380655800

marketing@hwashi.com

今接触

製品の説明

Durable C Type Crank Arm Table Spot Welding Machine For Precision Bending Tasks

The Sheet Metal Reinforcement Welding Machine is a high-performance industrial equipment designed for seamless welding of metal sheets (e.g., steel, aluminum, stainless steel) in structural reinforcement applications. Combining advanced arc welding technology with automated precision, it ensures robust joint strength, minimal deformation, and superior durability for heavy-duty fabrication.

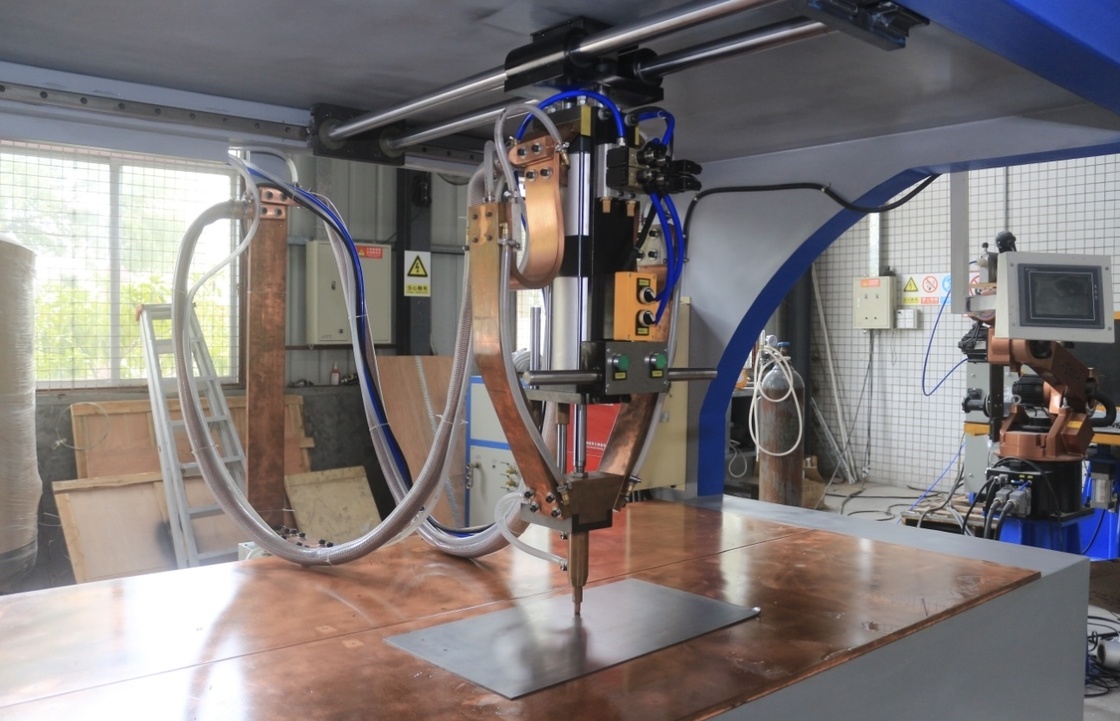

Intelligent welding control system Intelligent Touch Screen Controller Input and read welding parameters. The welding conditions can be easily set using the touch panel system.You can save the different welding parameters for different material and thickness. So you can recall the welding program easily	Welding platform Flat big copper table for welding various sheet metal door panels. If the workpiece can be placed on the table-type electrode, it can be welded without the use of auxiliary personnel. The welding gun move freely, allowing easy access to the desired welding point by one person.

Standard Welding Electrode Welding can be done efficiently by changing the electrode tip according to the type and size of product. It can also weld nut, or screws, etc.	Easy Set up and Operation. Comfortable working position: There is no need to hold the workpiece during welding; Pressurization is also automatic, greatly reducing the physical burden on the operator.

Key Features

1.Heavy-Duty Welding Capacity

Supports MIG/MAG, TIG, and Spot Welding modes for versatile sheet metal joining.
Welds materials up to 8mm thickness with stable arc control.

2.Intelligent Power System

Inverter-based power supply with 220V/380V dual voltage compatibility.
Energy-saving design reduces power consumption by 20% compared to conventional models.

3.Precision Control

Digital LCD interface with programmable parameters (current: 50-350A, voltage: 15-30V).
Auto-calibration for wire feed speed and gas flow (argon/CO₂).

The built-in Table Spot Welding Machine adds significant value by enabling seamless integration of bending and welding processes. This eliminates the need for transferring workpieces between separate machines, streamlining the production workflow and reducing handling time. The spot welding function is engineered to deliver strong and reliable welds on stainless steel, with adjustable parameters such as welding current, pressure, and duration. Operators can easily fine-tune these settings to match the specific thickness and type of stainless steel being processed, ensuring optimal weld strength and appearance.

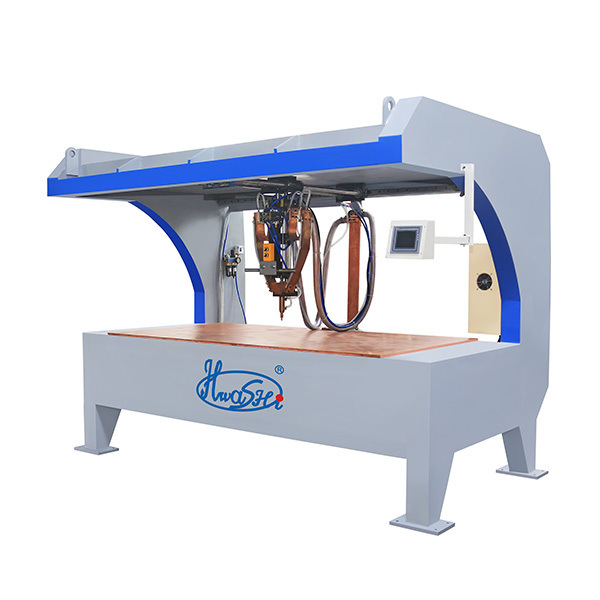

Table Spot Welding Machine

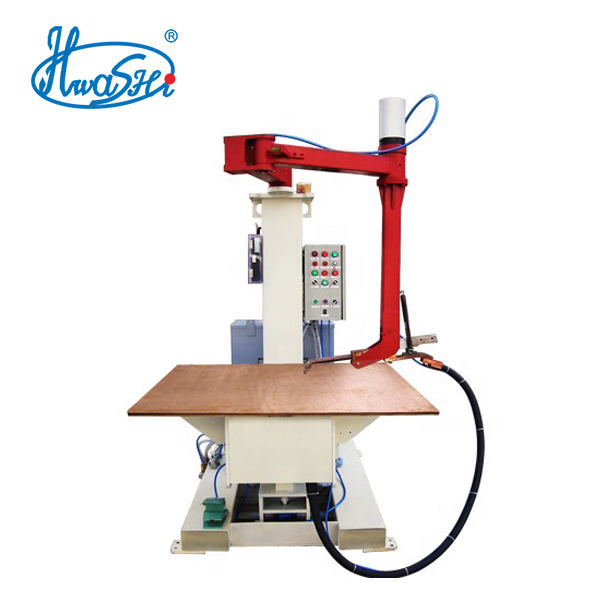

1. The movement patterns of crank arm mobile flat plate spot welder can be chosen as manual or CNC automatic mobile type.
2. The structure of manual mobile method is simple. It is convenient, flexible to move manually and the locating of welding spot is simple. Good applicability to complicated products.
3. Automatic mobile method adopts the coding servo motor, which is equipped with precision-machined good quality of slide rail, ball screw and automatic testing system in order to complete the electrode automatic movement.
4. Automatic device adopts the axis X, Y of mobile working table, utilizing the PLC to store setting mobile program. Simple and convenient setting.
5. Adopt direct single-point welding method. The lower electrode is designed as complete flat, which is suitable for welding of flat plate with multiple welding spots on the surface and be able to guarantee both the smoothness of surface and the consistency of welding spots.

Specification

Model	WL-SF-50/75/100K
Input Power (V/φ)	380/3
Rated Power (KVA)	50/75/100
Applicable Material	Stainless Steel, Carbon steel, Aluminum, Metal
Electrode Force (KG)	250-400
Wleding Thickness (MM)	3.0+3.0
Warranty	1 years

Application and samples

We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.

Applicable industries:

Various industries such as chassis and cabinets, elevators, electrical cabinets, automobiles, steel and wood furniture, kitchen appliances, etc.

Factory & Certificate

HWASHI : 22 years+ experience welding solutions expert

Guangdong Hwashi Technology Inc. which was established in 2001, is located in Huizhou, Guangdong province in China. We are the high-tech enterprise which is specialized in developing, manufacturing, and selling of resistance welding machine, automatic welding machine and industrial robot station. We have total two manufacturing plants covering an area about 60000 square meters.There are about 200 staffs in Hwashi, and among which there are more than 20 mechanical and electrical engineers. Most of our engineers got more than 10 years experience in welding industry. Until now, we got more than 70 patents regarding the welding machine projects. Our machines have been exported to more than 70 counrties in the world. And we have local distributor in Russia, Turkey, Romania, Saudi Arabia, Malaysia, Indonesia, India, and USA, etc. who will provide you professional pre-sales and after-sales service in local.
