Name: HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine
Brand: Guangdong Hwashi Technology inc.
SKU: WL-B-50K
Price: 157,805.00 USD
Availability: InStock

ホーム > 製品 > スポット溶接機械 >

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine

75KVA Power Spot Welding Machine

CE/CCC/ISO Certification Medium Frequency Inverter Spot Welder

Vertical Type MFDC Spot Welder

起源の場所:

中国

ブランド名:

HWASHI

証明:

CE/CCC/ISO

モデル番号:

WL-B-50K

送信

引用を要求しなさい

製品詳細

使用法:

バット溶接

保証:

12ヶ月

力:

75kVA

証明書:

CE/CCC/ISO

耐用年数:

8〜10年

冷水:

30L/min

色:

青い色です顧客の要求で

支払及び船積みの言葉

最小注文数量

1セット

価格

交渉可能

パッケージの詳細

海にふさわしい木製パッケージ

受渡し時間

あなたの支払いを受け取ってから7-30営業日

支払条件

LC、T/T

供給の能力

月額50セット

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine

お問い合わせ

ビデオ

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine

お問い合わせ

ビデオ

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 75KVA Power

お問い合わせ

自動電気抵抗バット溶接機 380V 入力電圧と 25-75KW 電力

お問い合わせ

送信

+8613380655800

marketing@hwashi.com

今接触

製品の説明

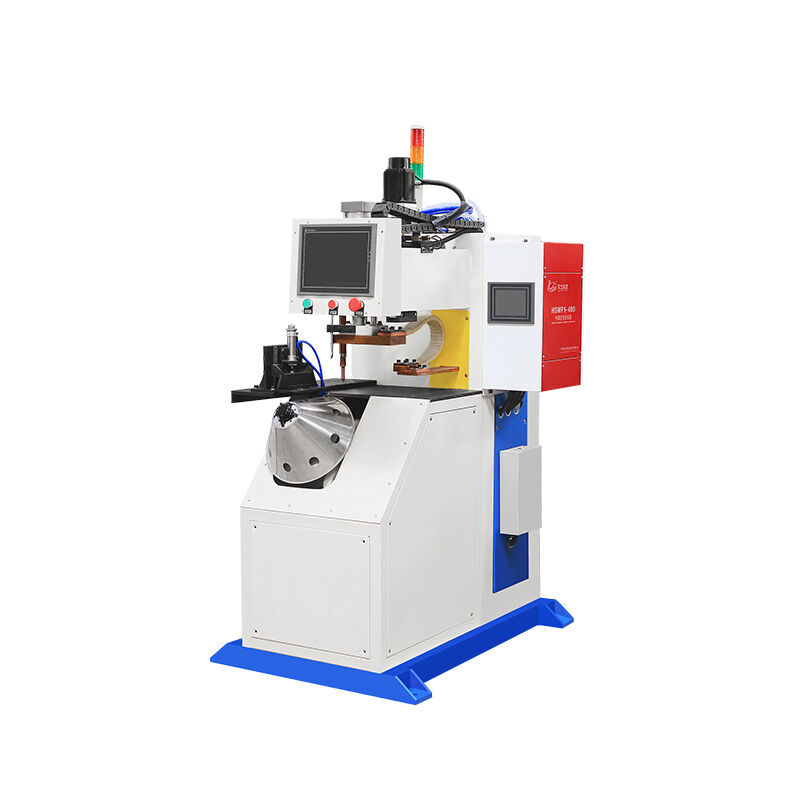

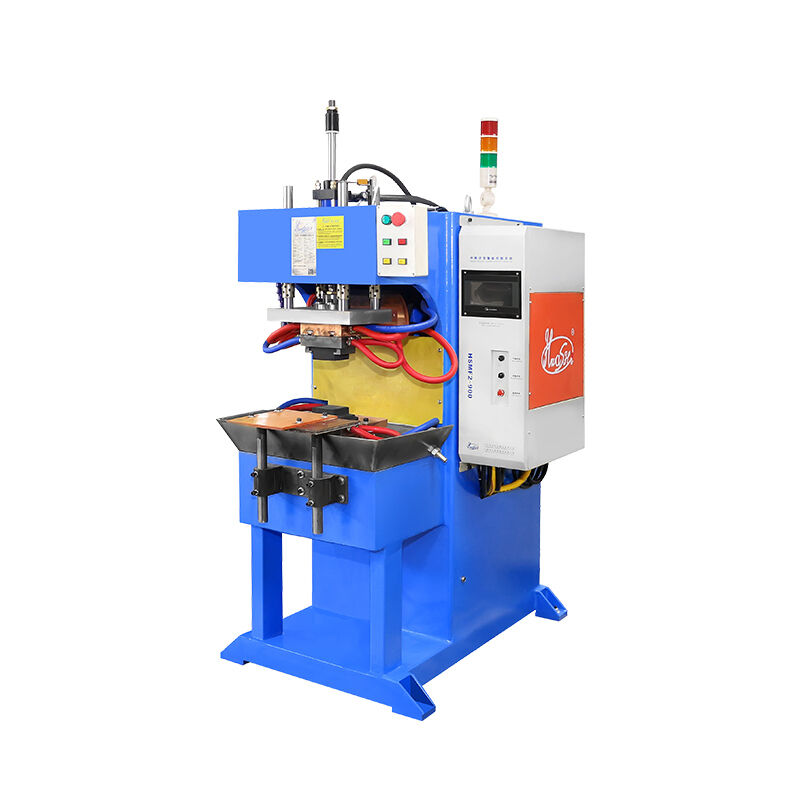

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine

The HWASHI WL-MF-250K is an advanced medium frequency inverter spot welding machine designed for precision metal sheet welding applications. This vertical type welding system utilizes innovative inverter technology to deliver superior performance and efficiency.

Advanced Technology Overview

This medium frequency inverter spot welder converts three-phase power supply through specialized rectification into 1000Hz AC voltage, which is then transmitted to a medium frequency transformer. The current is subsequently rectified to supply DC welding current, providing significant advantages in energy efficiency and performance.

Premium Construction Features

Thicker copper plates and copper belts ensure stable conductivity during welding operations
Customized electrodes designed for various materials including steel, aluminum, silver, stainless steel, and nickel steel
Enhanced performance reliability through superior material selection

Key Performance Advantages

Three-phase power supply with grid balance and minimal grid impact
High power factor of 0.7-0.9 (compared to 0.4 for power frequency), significantly reducing reactive power loss
Enhanced welding control accuracy with inverter frequency above 1000Hz
Superior welding quality with stable nugget size, minimal spatter, and excellent surface finish
Reduced energy consumption and infrastructure requirements
User-friendly interface with multiple welding parameter storage and real-time monitoring

Technical Specifications

Model	WL-MF-100K
Input Power (V/φ)	380/3
Rated Power (KVA)	100
Applicable Material	Stainless Steel, Carbon steel, Aluminum, Metal
Max Short Circuit Current (KA)	21
Electrode Force (KG)	1000
Electrode Stroke (MM)	100
Dimension(LWH)	950mm800mm1675mm
Warranty	1 year

Application Examples
