Name: 25KVA Double Side Capacitive Discharge Spot Welder for Stainless Steel Cookware Pot Handle Projection Welding
Brand: Guangdong Hwashi Technology inc.
SKU: WL-B-50K
Price: 157,805.00 USD
Availability: InStock

ホーム > 製品 > スポット溶接機械 >

25KVA Double Side Capacitive Discharge Spot Welder for Stainless Steel Cookware Pot Handle Projection Welding

25KVA Power Capacitive Discharge Spot Welder

Double Side Welding Spot Welding Machine

Stainless Steel Cookware Projection Welding Machine

起源の場所:

中国

ブランド名:

HWASHI

証明:

CE/CCC/ISO

モデル番号:

WL-B-50K

送信

引用を要求しなさい

製品詳細

製品名:

25K倍の側面SSの調理器具の鍋のハンドルのプロジェクション溶接の容量性排出の点の溶接工

サイズ:

950mm*800mm*1675mm

応用:

ステンレス鋼、鋼鉄ベルトの溶接。鋼鉄ストリップ。調理器具

重さ:

350 kg

電力(kW):

保証:

12ヶ月

標準:

CE/CCC/ISO

支払及び船積みの言葉

最小注文数量

1セット

価格

交渉可能

パッケージの詳細

海にふさわしい木製パッケージ

受渡し時間

あなたの支払いを受け取ってから7-30営業日

支払条件

LC、T/T

供給の能力

毎月50セット

25KVA Double Side Capacitive Discharge Spot Welder for Stainless Steel Cookware Pot Handle Projection Welding

お問い合わせ

ビデオ

HWASHI 75KVA Power Vertical Type Medium Frequency Inverter Spot Welding Machine CE/CCC/ISO Certified

お問い合わせ

ビデオ

HWASHI WL-MF-250K 垂直型 75KVA パワー中間周波数インバーター金属シートのスポット溶接機

お問い合わせ

ビデオ

HWASHI 75KVA パワースポット溶接機 CE/CCC/ISO 認定コンダッシター放電スポット溶接機 8-10 年の使用寿命

お問い合わせ

送信

+8613380655800

marketing@hwashi.com

今接触

製品の説明

25K Double Side Capacitive Discharge Spot Welder For SS Cookware Pot

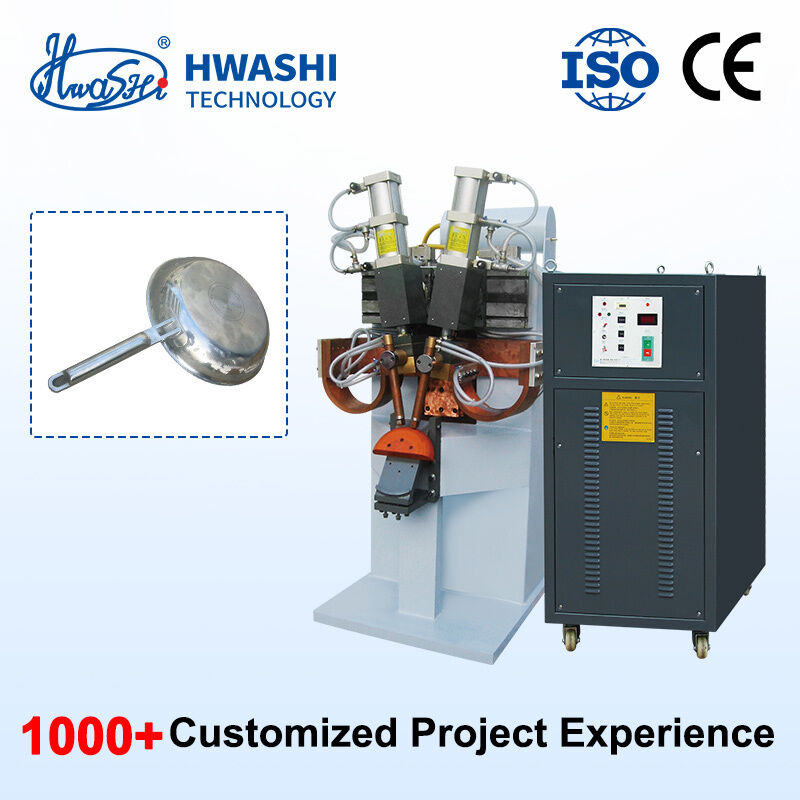

25K Double Side SS Cookware Pot Handle Projection Welding Capacitive Discharge Spot Welder. This double side stainless steel cookware pot handle projection welding machine is specifically designed for welding pot handles. It enables simultaneous welding of both handles to significantly increase production efficiency. Using projection welding methodology, this 25KVA machine is equipped with a capacitor discharge welding power source and is suitable for welding pot bodies with 1.2mm thickness and handles with 5mm diameter (with emboss).

Intelligent Welding Control System

Intelligent Touch Screen Controller for input and reading welding parameters. Options include Digital Dial Code Type, Intelligent Microcomputer Type, and Touch Screen Type.

Premium Raw Materials

Thicker Copper Plate or Copper Belt construction to ensure stable conductivity during welding operations.

Custom Processing Electrodes

Customized electrodes suitable for welding various materials including steel, aluminium, silver, stainless steel, and nickel steel.

Optimized Shape Structure

Designed with the right machine shape and mold configuration according to specific welding product requirements.

Key Features of Capacitor Discharge Spot Welding Machine

Low power grid requirements with minimal impact on electrical networks
Short welding process with high instantaneous current and small heat affected zone
Water cooling circulation system effectively reduces electrode and transformer consumption
Minimal welding surface oxidation and deformation, no black coating, eliminating post-welding grinding processes

Technical Specifications

Model	Voltage (V)	Power (KVA)	Output Head (W.S)	Capacitance (UF)	Electrode Force (KG)	Electrode Stroke (MM)	Overall Dimension (MM)
WL-C-1K	220V 1PH	1KVA	300	3000	30	25	545
WL-C-2K	220V 1PH	2KVA	500	4500	100	50	545
WL-C-2.5K	220V 1PH	2.5KVA	1000	9000	100	50	545
WL-C-3K	380V 3PH	3KVA	1500	14000	350	80	950
WL-C-5K	380V 3PH	5KVA	3000	28000	350	80	700
WL-C-7K	380V 3PH	7KVA	4500	42000	800	100	950
WL-C-10K	380V 3PH	10KVA	6000	60000	1000	100	950
WL-C-12K	380V 3PH	12KVA	7000	70000	1000	100	950
WL-C-15K	380V 3PH	15KVA	8000	80000	1000	100	950
WL-C-18K	380V 3PH	18KVA	10000	15000	1000	100	950
WL-C-20K	380V 3PH	20KVA	15000	150000	1500	100	950
WL-C-25K	380V 3PH	25KVA	18000	18000	2000	100	950
WL-C-30K	380V 3PH	30KVA	20000	20000	2000	100	1100
WL-C-40K	380V 3PH	40KVA	25000	25000	2000	100	1100
WL-C-50K	380V 3PH	50KVA	30000	30000	2000	100	1100
WL-C-60K	380V 3PH	60KVA	35000	35000	2000	100	1100

Application Examples and Samples
